CPX 30-850 refrigerant dryer series
The CPX refrigerant dryers guarantee dry and qualitative compressed air which prolongs the lifetime of your equipment and ensures a superior production quality. Water vapour is eliminated, avoiding corrosion in your compressed air network and tools. All in all this lowers your maintenance costs and improves your overall production process for complete peace of mind.
The CPX dryer refrigerant circuit is designed as a whole and only uses components of high and reliable quality, supplied by globally recognized manufacturers.
Key benefits of CPX series
The robust structure of CPX refrigrant dryers ensures a safe installation independently of the environment. Its integrated electronic controller helps in monitoring the operations and dew point.
This series is integrated with highly efficient heat exchanger that safeguards the optimized cooling power and lowers the pressure drops. It also has a reliable timer drain with adjustable drain interval and discharge time.
Technical Specifications
CPX series 30-700 50Hz
Model |
l/min | cfm |
m³/h |
Bar | V/Ph/Hz | G | Refrigerant | Length |
Width |
Height |
CPX 30 |
1000 |
35 |
60 |
13 |
230/1/50 |
G3/4" |
R134a |
352 |
430 |
445 |
CPX 50 |
1500 |
53 |
90 |
13 |
230/1/50 |
G1" |
R134a |
550 |
370 |
800 |
CPX 75 |
2100 |
74 |
126 |
13 |
230/1/50 |
G1" |
R134a |
550 |
370 |
800 |

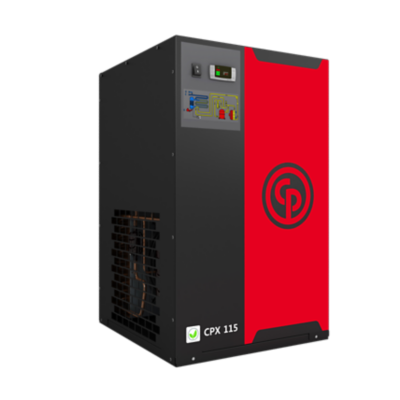

CPX 115 |
3500 |
124 |
210 |
13 |
230/1/50 |
G1" |
R410A |
520 |
500 |
800 |
CPX 160 |
4500 |
159 |
270 |
13 |
230/1/50 |
G1.5" |
R410A |
550 |
600 |
980 |
CPX 200 |
6000 |
212 |
360 |
13 |
230/1/50 |
G1.5" |
R410A |
550 |
600 |
980 |
CPX 250 |
7500 |
265 |
450 |
13 |
230/1/50 |
G2" |
R410A |
550 |
600 |
980 |
CPX 300 |
9000 |
318 |
540 |
13 |
230/1/50 |
G2" |
R410A |
900 |
750 |
1000 |
CPX 380 |
11500 |
406 |
690 |
13 |
230/1/50 |
G2.5" |
R410A |
1025 |
660 |
1120 |
CPX 480 |
15000 |
530 |
900 |
13 |
230/1/50 |
G2.5" |
R410A |
1025 |
660 |
1120 |
CPX 600 |
17500 |
618 |
1050 |
13 |
230/1/50 |
G2.5" |
R410A |
1025 |
660 |
1120 |
| CPX 700 | 22500 | 794 | 1350 | 13 | 230/1/50 | G2.5" | R410A | 1025 |
660 |
1120 |
CPX series 30-850 60Hz
Model |
l/min |
cfm |
m³/h |
Bar |
V/Ph/Hz |
G |
Refrigerant |
Length |
Width |
Height |
CPX 30 |
1000 |
35 |
60 |
13 |
220/1/60 |
G3/4" |
R134a |
432 |
354 |
445 |
CPX 50 |
1500 |
53 |
90 |
13 |
220/1/60 |
G1" |
R134a |
550 |
370 |
800 |
CPX 75 |
2100 |
74 |
126 |
13 |
220/1/60 |
G1" |
R134a |
550 |
370 |
800 |
CPX 115 |
3300 |
116 |
198 |
13 |
220/1/60 |
G1.5" |
R410A |
520 |
500 |
800 |
CPX 160 |
4500 |
159 |
270 |
13 |
220/1/60 |
G2" |
R410A |
550 |
600 |
980 |
CPX 200 |
5700 |
201 |
342 |
13 |
220/1/60 |
G2" |
R410A |
550 |
600 |
980 |
CPX 250 |
7200 |
254 |
432 |
13 |
220/1/60 |
G2" |
R410A |
550 |
600 |
980 |
CPX 300 |
8400 |
297 |
504 |
13 |
220/1/60 |
G2.5" |
R410A |
900 |
750 |
1000 |
CPX 380 |
10800 |
381 |
648 |
13 |
220/1/60 |
G2.5" |
R410A |
1025 |
660 |
1120 |
CPX 480 |
13800 |
487 |
828 |
13 |
220/1/60 |
G2.5" |
R410A |
1025 |
660 |
1120 |
CPX 600 |
17000 |
600 |
1020 |
13 |
220/1/60 |
G2.5" |
R410A |
1025 |
660 |
1120 |
CPX 700 |
20000 |
706 |
1200 |
13 |
220/1/60 |
G2.5" |
R410A |
1025 |
660 |
1120 |
CPX 850 |
24000 |
847 |
1440 |
13 |
220/1/60 |
G2.5" |
R410A |
1025 |
660 |
1120 |
